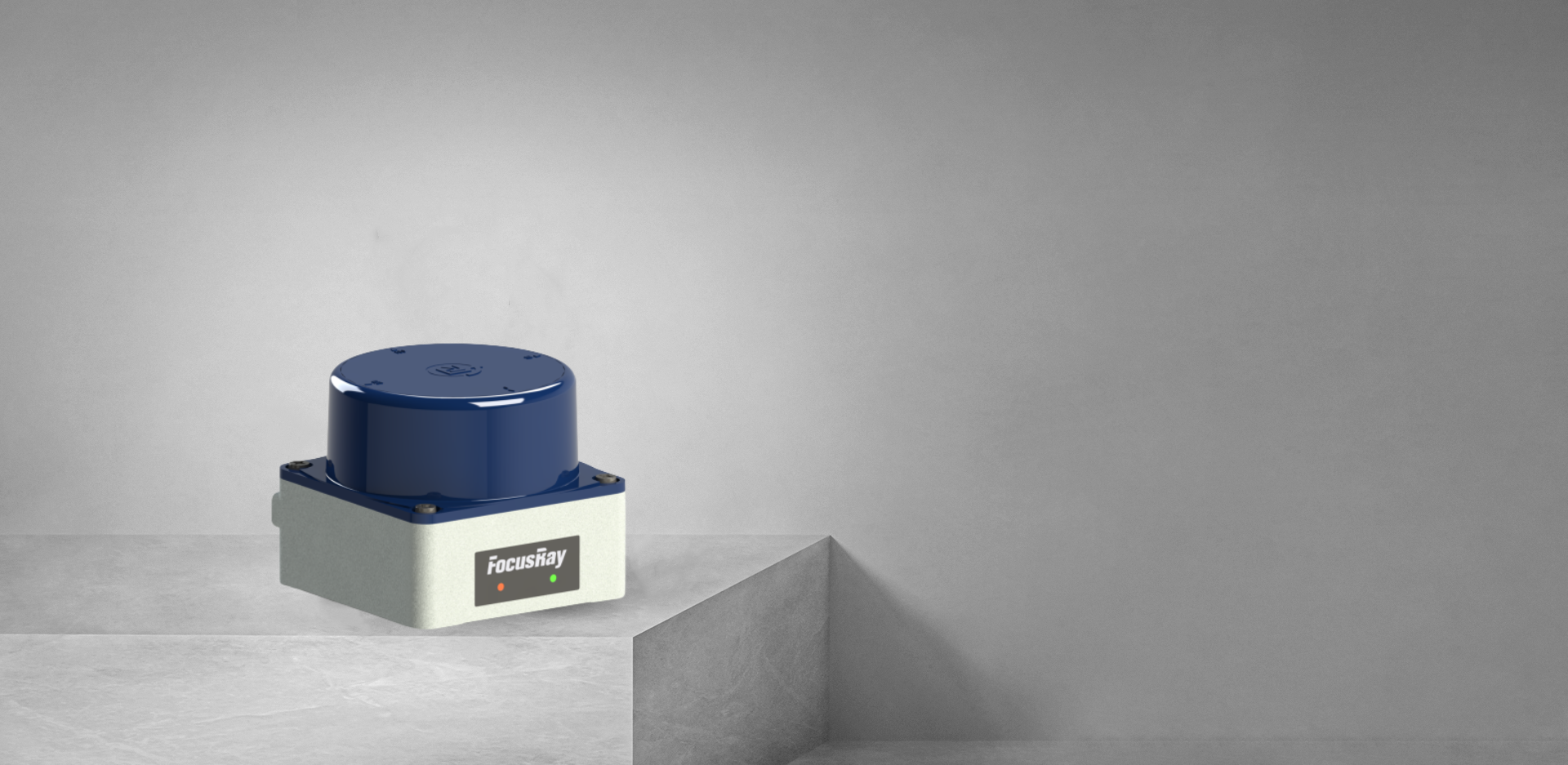

Ultra long scan radius
of 45 meters
Excellent optical resolution system
accuracy within ±1cm

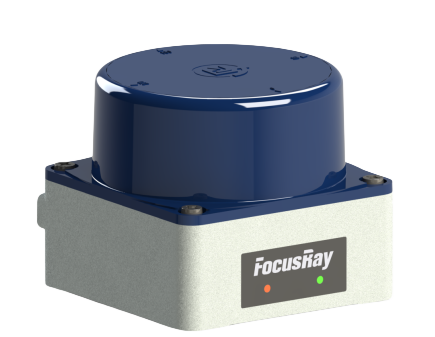

Compact structure and
simple integration
65mm×56mm×65mm
360°full field of view
No blind zone
Ultra-high point
frequency over 150K
Nationwide substitution
| Detection distance | Output range: 0.05-45m Detection capability: ≥ 45m@90 %Reflectivity ≥20m@10 %Reflectivity |
|---|---|
| Scanning principle | dToF |
| Scan angle | 360° |
| Angular resolution (customizable) | 0.1°@30Hz/50Hz |
| Scanning precision | ±20mm |
| Types of optics | Pulse laser diode |
| Wavelength | 905nm |
| Laser level | 1 |
| Beam divergence angle | 2mard*7.1mard |
| Output Resolution | 1.0mm |
| Sampling rate (customizable) | ≥108KHz |
| Operation temperature | -30℃~50℃ |
| Response time | ≤33ms(15Hz) |
|---|---|
| Storage temperature | -40℃~70℃ |
| Power supply voltage | DC9-28V |
| Power consumption | ≤5.2W |
| Output type | Ethernet(TCP/IP) |
| Dimensions (width x height x depth) | 65mm×56mm×65mm |
|---|---|
| Weight (bare metal weight) | Approximately 0.3kg |
| Shell Material | Aluminum alloy |
| Shell color | Cold ash |
| Cold ash | IP67 | GB/T 4208-2017 |
|---|---|---|
| Ambient light immunity | ≥100000Lux | |
| Vibration resistance | 10~55Hz, dual amplitude 1.5mm, scanning rate | GB/T 2423.10-2019 |
| Impact resistance | Half sine wave impact, 15g, 11ms, 3 times/impact surface, a total of 18 impacts | Half sine wave impact, 15g, 11ms, 3 times/impact surface, a total of 18 impacts |
| Electrostatic Discharge | Level 3 (contact discharge ± 6kV, air discharge ± 8kV) | Level 3 (contact discharge ± 6kV, air discharge ± 8kV) |
| Pulse group | Pulse group | GB/T 17626.4-2018 |
| Radiated disturbance test | A-grade industrial grade | GB/T 9254-2008 |
| Conducted disturbance test | A-grade industrial grade | GB/T 9254-2008 |
| A-grade industrial grade | Level 5 (100A/m) | GB/T 17626.8-2006 |
| Constant damp heat test | Temperature 50 ℃, humidity 95%, 72H | Temperature 50 ℃, humidity 95%, 72H |
