H1 270° High-performance 270 degree 2D LiDAR

Supports AMRs and AGVs with accurate localization and path planning, enabling efficient fleet operations

H1E0-04D - Near-field Excellence, Compact, Accurate

The H1E0-04D takes compactness and precision a step further, offering an even smaller design with enhanced near-field detection capabilities. It achieves reliable measurement performance up to 8 m at 2% reflectivity, enabling robust navigation in environments where objects may be small, dark, or challenging to detect. This makes it particularly suited for dense or constrained workspaces, where high sensitivity in the near field and minimal footprint are key requirements for seamless integration into mobile platforms and industrial systems.

Essential navigation LiDAR delivering precision, value, and flexible integration

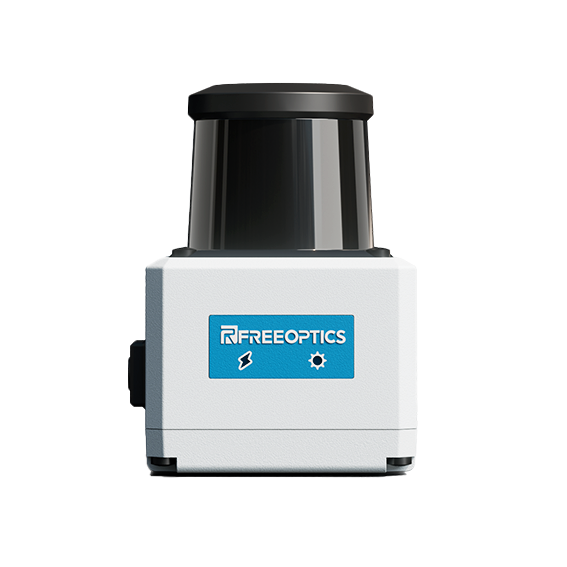

High-Performance H1

安全型激光雷达S1产品图

*The appearance of products published on this website may vary due to screen display, product batch or version customization. Please refer to the actual sample/product for accuracy; The product parameters are typical values under specific testing conditions and may vary due to differences in product batches, hardware versions, and usage conditions. Please refer to the factory inspection for qualification; The product certification information shall be based on the official certification documents. Our company has the right to interpret the information on this website.

Measuring range 0.1-45m
Ranging capability:
0.1-8m@2% reflectivity
0.1-15m@10% reflectivity
0.1-45m@90% reflectivity
0.1-45m@PL560 reflectivity
Blind zone range
(measured from optics cover) 7.5cm
Range accuracy ±30mm
Statistical error(1σ) ±10mm@15m
10% reflectivity
Angular resolution 0.05°@15Hz
0.1°@30Hz
Scanning method dToF
Scanning angle 270°
Light source Fiber-coupled laser diode
Laser wavelength 905nm
Laser safety class Class 1
Beam divergence angle 10mrad
Output resolution 1.0mm
Sampling rate 108kHz
Response time ≤33ms(30Hz)
≤66ms(15Hz)
Supply voltage DC12~26V
Power consumption ≤3W
Interface Ethernet(TCP)
Certified authority TÜV Rheinland
Standards CE: AE 50549002 0001
CB: JPTUV-136457
FCC: AK 50548992 0001
UL: R 50552162 0001
CU 72227138 0001
Dimension(W×H×D) 60mm × 87mm × 60mm
Weight 0.204kg
Case material PC+ABS
Housing color RAL 9005 (Black)RAL 9002(Grey white)
Enclosure rating IP65
Ambient light immunity ≤80000 Lux
Operating temperature -10°C~50°C
Storage temperature -30°C~70°C
Shock resistance
IEC 60068-2-27
Half-sine shock,15g,11ms,3 times per impact surface, total of 18 shocks
Vibration resistance
IEC 60068-2-6
10–55Hz, double amplitude 1.5mm, sweep rate 1 octave/min
Damp heat, steady state
IEC 60068-2-78
Temperature 80°C, humidity 95%, duration 67 hours
Change of temperature
IEC 60068-2-14
-10°C(4H)to 50°C(8H), 1°C per minute, 4 cycles
Electrostatic Discharge
IEC 60068-4-2
±6.0kV (contact discharge), ±8.0kV (air discharge)
Radio Frequency Electromagnetic Field
IEC 60068-4-3
10V/m
Power-frequency magnetic field
IEC 60068-4-8
100A/m
Electrical fast transients/burst immunity test
IEC 60068-4-4
±1kV for DC port
Radio frequency conducted immunity test
IEC 61000-4-6
10V for DC port
Enclosure rating IP65 (IEC 60529)
Ambient light immunity ≤80 klx
Operating temperature -10°C~50°C
Storage temperature -25°C~70°C
Vibration resistance IEC 60068-2-6, IEC 60068-2-64 IEC 60721-3-5, IEC TR 60721-4-5 IEC 61496-3
Class 5M1 (IEC 60721-3-5)
Shock resistance IEC 60068-2-27, IEC 60721-3-5 IEC TR 60721-4-5, IEC 61496-3
Continuous shock 50 m/s², 11 ms 100 m/s², 16 ms
EMC IEC 61496-1, IEC 61000-6-2 IEC 61000-6-3
CONTACT SALES

03 | variants

Configurable for your requirements with different variants

S1系列激光雷达产品
H1EO-02A
High-performance 270° 2D LiDAR
ROBOTS Stationary Navigation

Scanning Angle :  270°

Measuring Range:  0.1m~45m

Enclosure Rating :  IP65

W×H×D:60mm×87mm ×60mm

S1系列激光雷达产品
H1EO-04D
High-performance 270° 2D LiDAR
ROBOTS Stationary Navigation

Scanning Angle :  270°

Measuring Range:  0.1m~45m

Enclosure Rating :  IP65

W×H×D:50mm×76mm×50mm

S1系列激光雷达产品
H1EO-02Y
High-performance 270° 2D LiDAR
ROBOTS Stationary Navigation

Scanning Angle :  270°

Measuring Range:  0.1m~45m

Enclosure Rating :  IP67

W×H×D:60mm×87mm ×60mm

04 | Application

The H Series is engineered as high-precision navigation LiDAR, making it well-suited for a broad range of applications. In warehousing and logistics, it supports AMRs and AGVs with accurate localization and path planning, enabling efficient fleet operations. For service robots, its compact form and configurable resolution provide reliable perception in environments where space and adaptability are critical. Beyond robotics, the H Series also serves smart transportation and traffic monitoring, offering precise detection and mapping to enhance safety and efficiency in dynamic public settings.

In the industrial safety field, it supports applications such as area protection, access guarding, and perimeter monitoring, offering flexible protective and warning fields to adapt to complex layouts.

Warehouse and logistics
Service robots
Stationary
